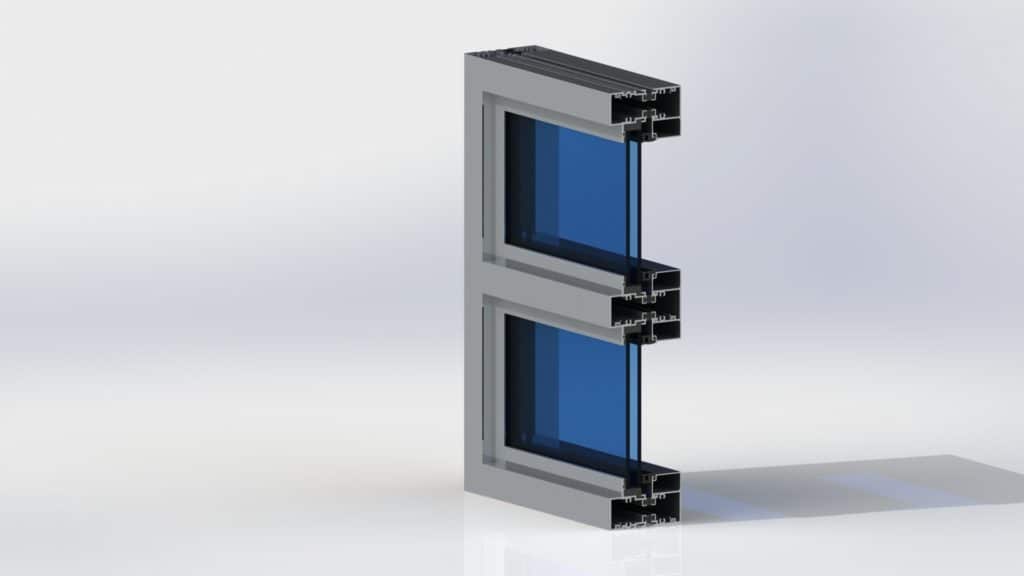

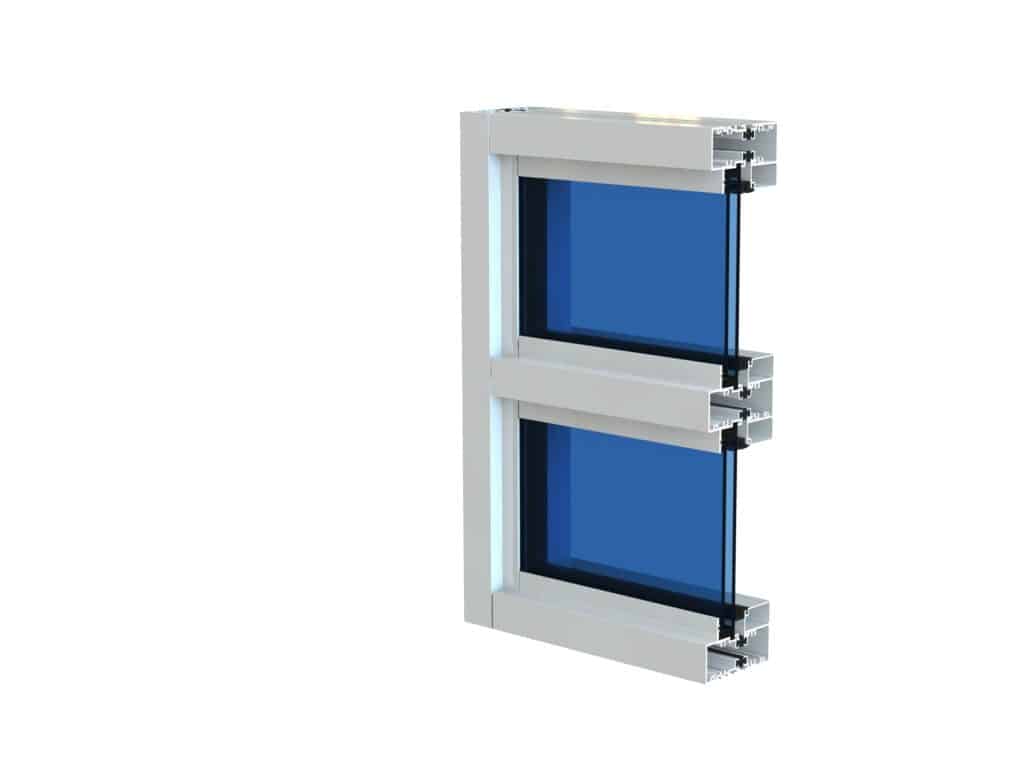

SMI-090 Impact Storefront System

The SMI-090 is a versatile storefront solution engineered for maximum protection and adaptability. Its standout feature is an adjustable glazing pocket capable of accommodating a wide range of glass thicknesses, from standard impact-resistant options to specialized flood-barrier glazing. Designed with a “non-weep” wet seal system, the SMI-090 ensures a water-tight barrier against the elements while offering energy-efficient options like thermal breaks to meet modern building codes.

Key Features

• Flexible Glazing: The adjustable pocket supports various glass types, including 9/16″ laminated, 1 5/16″ laminated-insulated, and multi-laminated flood-resistant glazing (up to 1 5/16″).

• Energy Efficient: Available with thermal break options to enhance insulation and meet current energy standards.

• Streamlined Installation: Features a screw spline assembly that allows for pre-glazing, speeding up on-site installation.

• Design Versatility: Capable of being stretch-formed for radius shapes or configured for segmented radius designs. It is also prepared to receive approved PTAC louvers.

Technical Specifications

• Framing Profile: 1 3/4″ x 4 1/2″ horizontal and vertical members.

• Material: Aluminum alloy 6063-T6.

• Assembly: Screw spline with stainless steel fasteners.

• Glass Options:

  • Impact: 9/16″ laminated or 1 5/16″ laminated-insulated.

  • Non-Impact: 1/4″ tempered or 1″ insulated glass (IG).

  • Flood Barrier: Up to 1 5/16″ multi-laminated.

• Maximum Panel Sizes:

  • 9/16″ Laminated (Reinforced/Non-Reinforced): Up to 48″ x 96″

  • 1 5/16″ Insulated Laminated (Reinforced): Up to 48″ x 120″

• Certifications & Testing:

  • Approvals: Florida Building Code (FBC), Miami-Dade (NOA), MD.

  • Testing Passed: TAS 201 (Impact), TAS 202 (Static Air Pressure), TAS 203 (Cyclic Pressure), ANSI Z97.
