SMI-245 Series Non-Impact Storefront (Insulated Glass)

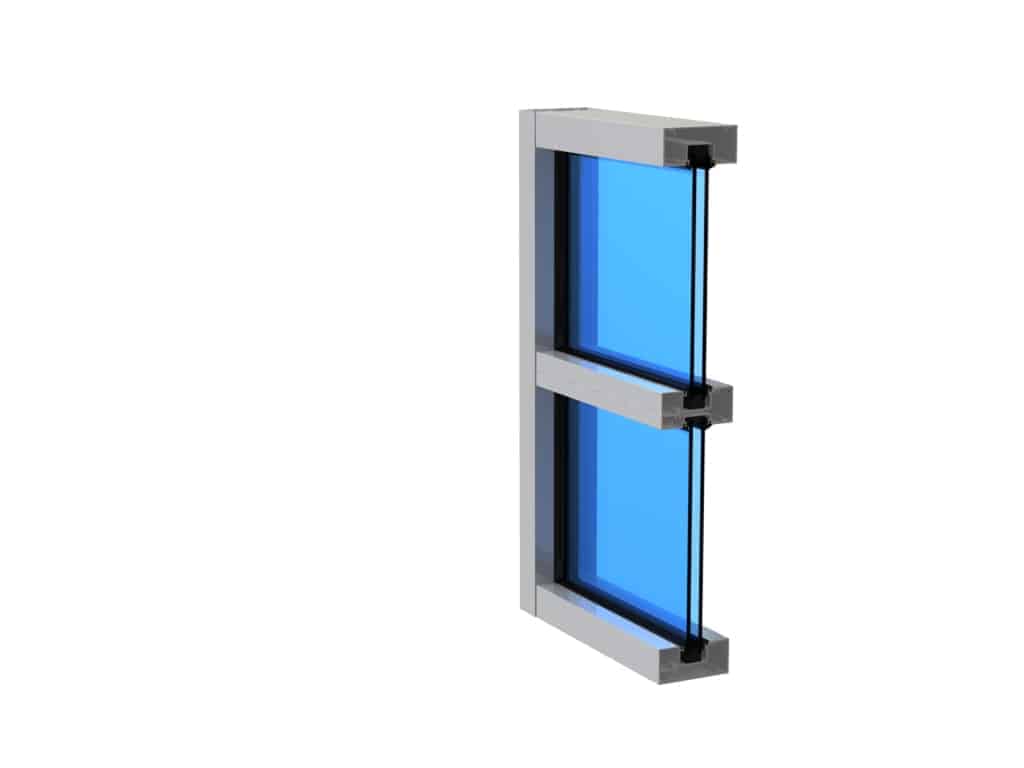

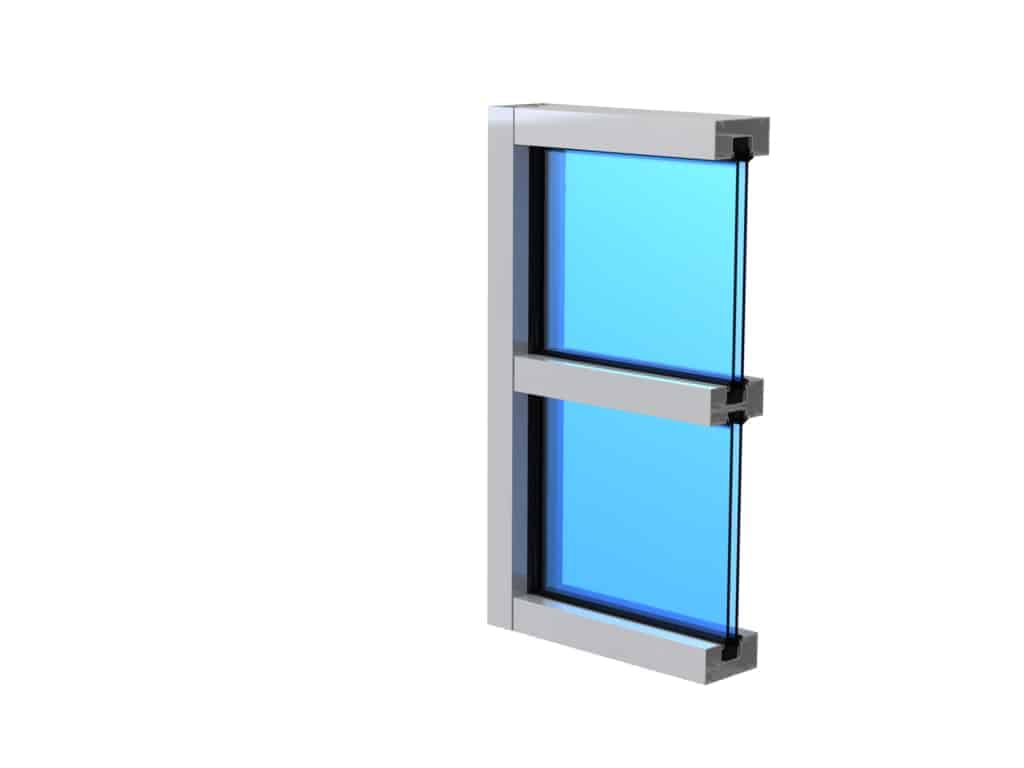

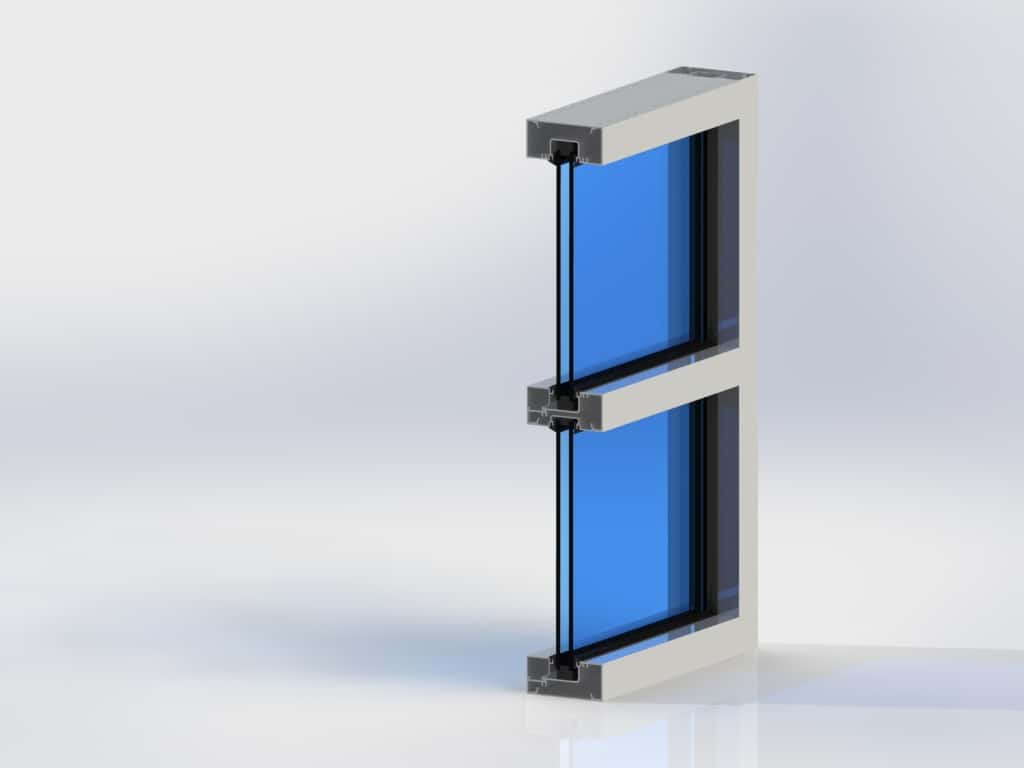

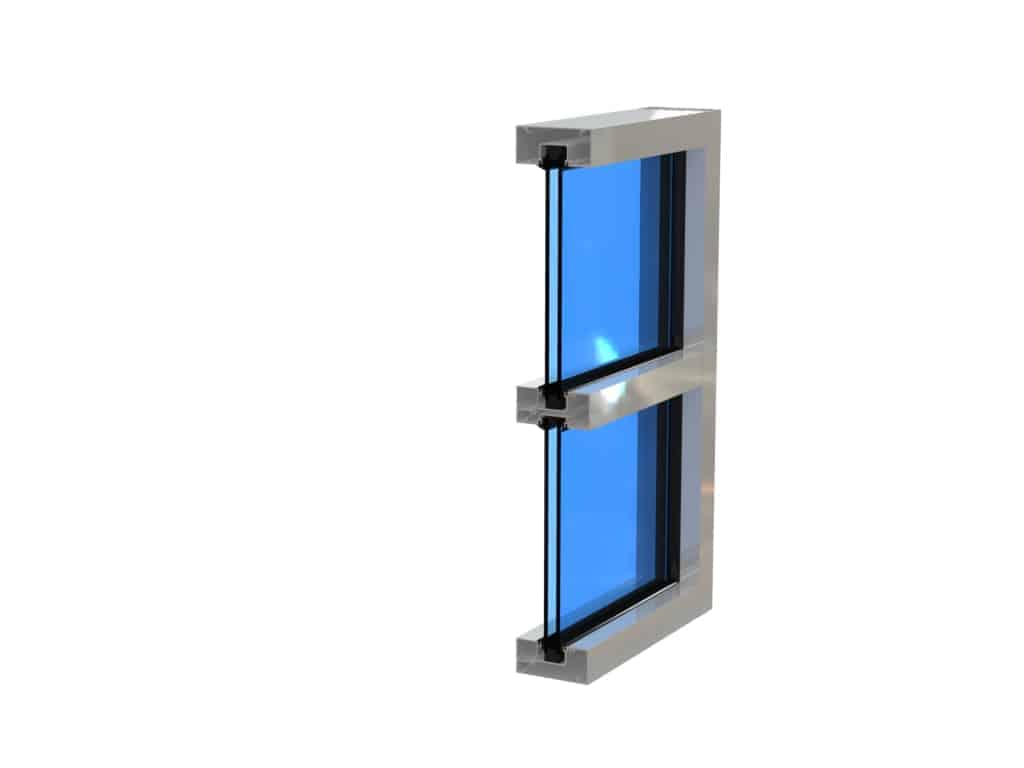

Versatility & Performance The SMI-245 Series is a flexible, non-impact aluminum framing system designed to streamline installation while offering robust design options. Built as a 2-inch flush-glazed system, it is optimized for 1″ insulated glass, making it an excellent choice for exterior applications where thermal efficiency is key. For interior projects requiring a different aesthetic, the system can be easily adapted to house 1/2″ tempered glass by simply swapping gaskets, offering a unified look across mixed-use projects.

Key Features

• Dual Glazing Capability: Accommodates both 1″ insulated glass (exterior) and 1/2″ tempered glass (interior) within the same framing system.

• Simplified Installation: The screw spline assembly allows for unitized construction and pre-fabrication, significantly reducing on-site labor and installation time.

• Clean Aesthetics: Designed with no exposed fasteners for a sleek, modern appearance suitable for high-visibility storefronts and low-rise buildings.

• Durable Sealing: Utilizes a dry glaze system with high-quality EPDM gaskets to ensure long-lasting weather protection.

Technical Specifications

• Framing Dimensions: 2.00″ x 4.50″ horizontal and vertical members.

• Material: Aluminum alloy 6063-T6.

• Maximum Panel Sizes:

  • 1″ Insulated Glass: Up to 48″ x 120″

  • 1/2″ Tempered Glass: Up to 36″ x 144″ (Reinforced)

• Performance Ratings (Design Pressure):

  • 1″ Insulated (Non-Reinforced): +/- 120 psf

• Compliance & Testing:

  • Approvals: Florida Building Code (FBC).

  • Testing Passed: TAS 201, TAS 202, TAS 203, ANSI Z97.

Options & Customization

• Pre-Fabrication: Available pre-assembled to expedite project timelines.

• Design Flexibility: Can be segmented for radius or curved applications.

• Reinforcement: Reinforcement options available for interior applications with larger panel heights.
