FS-300 Impact Front Glazed Storefront System

The FS-300 Series represents a significant advancement in storefront technology, developed through a collaborative effort between architects, engineers, and glaziers. This patent-pending system is designed to outperform competitors by offering superior design pressures, simplified assembly, and the ability to accommodate significantly larger glass panels. Ideally suited for coastal environments, it provides a high-performance solution that balances aesthetic appeal with robust hurricane protection.

Key Performance Features

• Market-Leading Strength: Engineered to handle higher wind loads and impact forces than standard storefronts.

• Expansive Views: capable of supporting massive single panels up to 180 inches (15 feet) in height, allowing for dramatic, uninterrupted glass facades.

• Water & Energy Efficiency: Rated for 18 psi water resistance and fully compliant with 2023 Energy Code standards, with optional thermal breaks available.

• Installation Versatility: Offers flexible assembly options (screw spline or shear block) and supports pre-glazing to streamline project timelines.

Technical Specifications

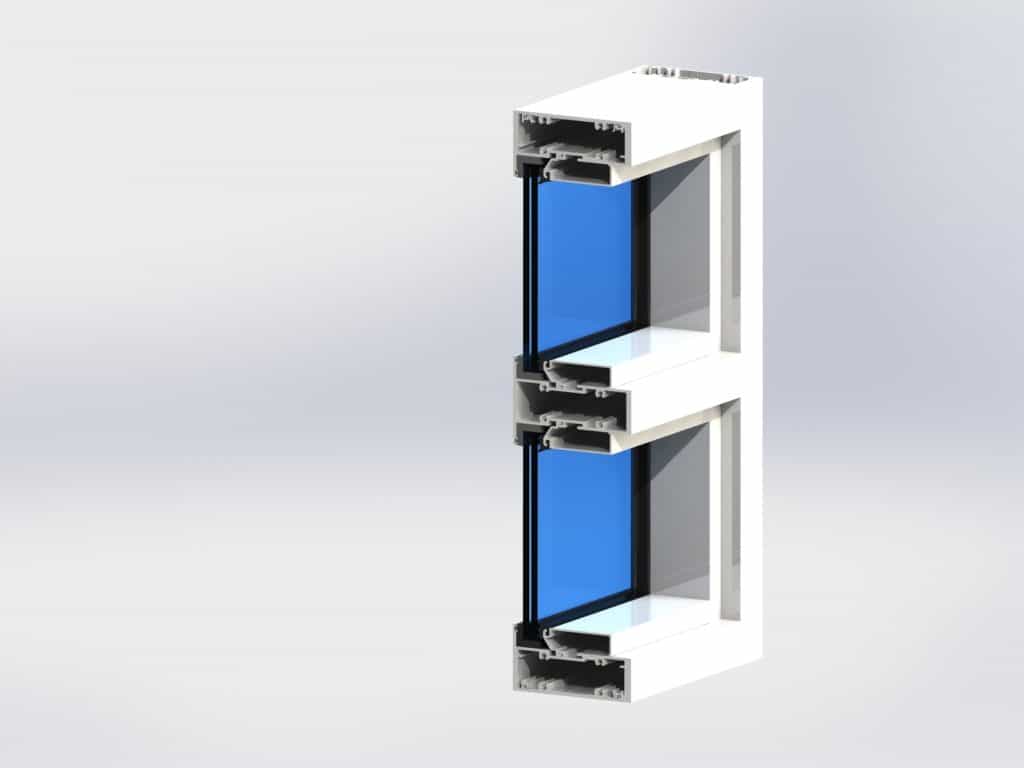

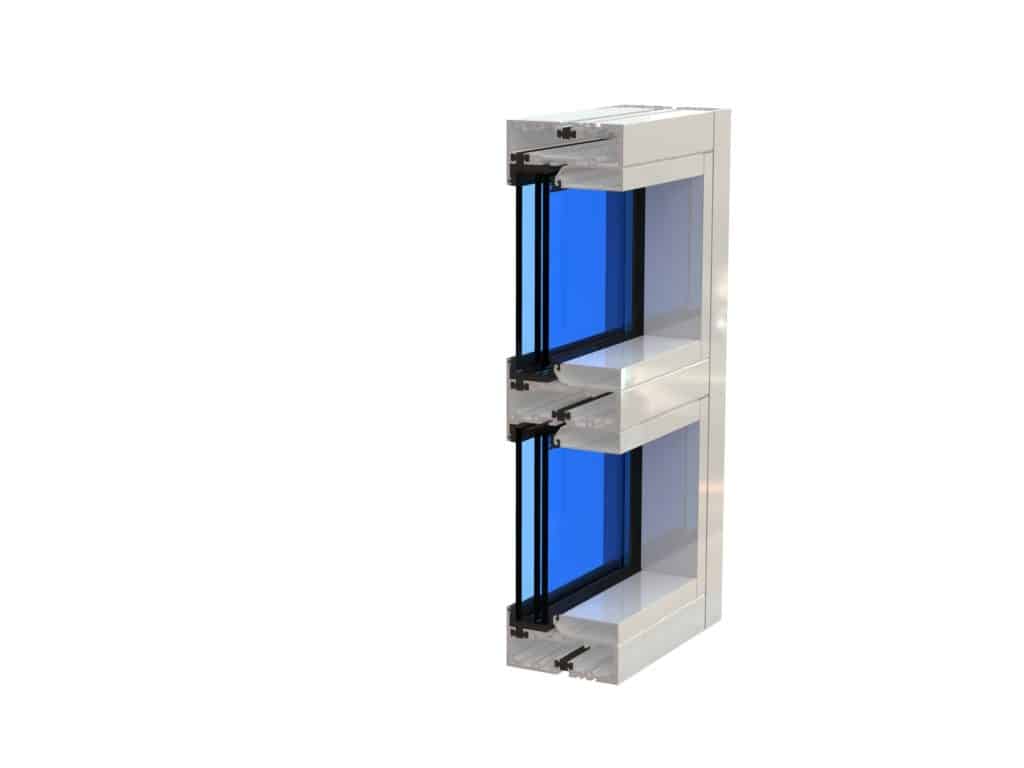

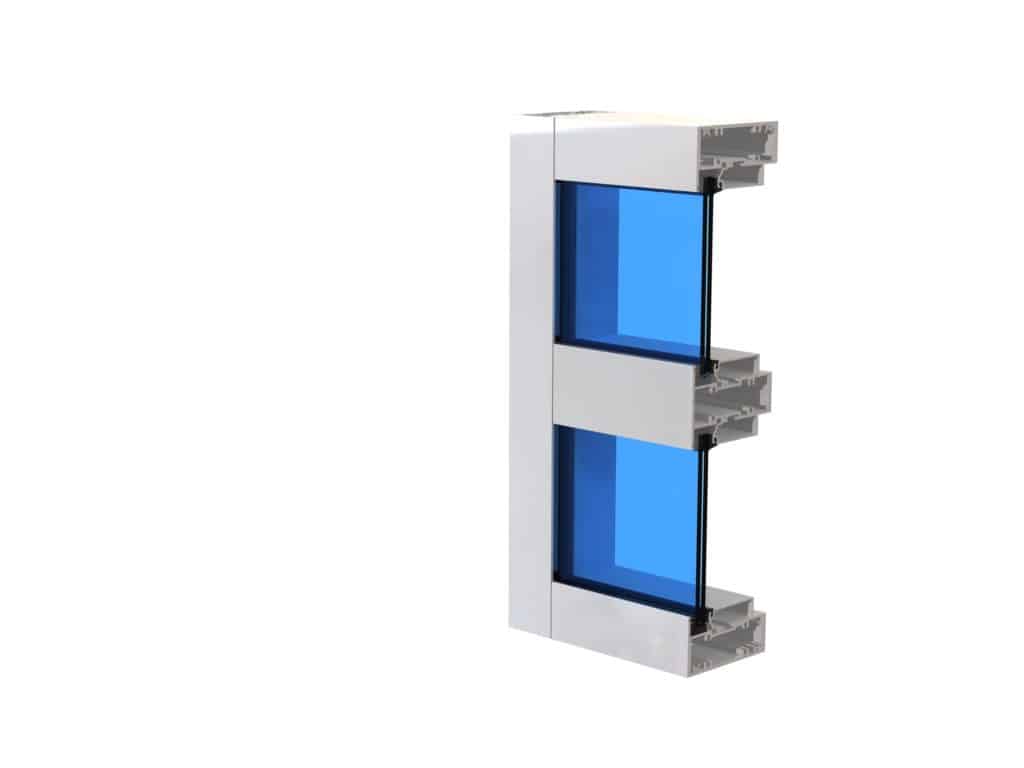

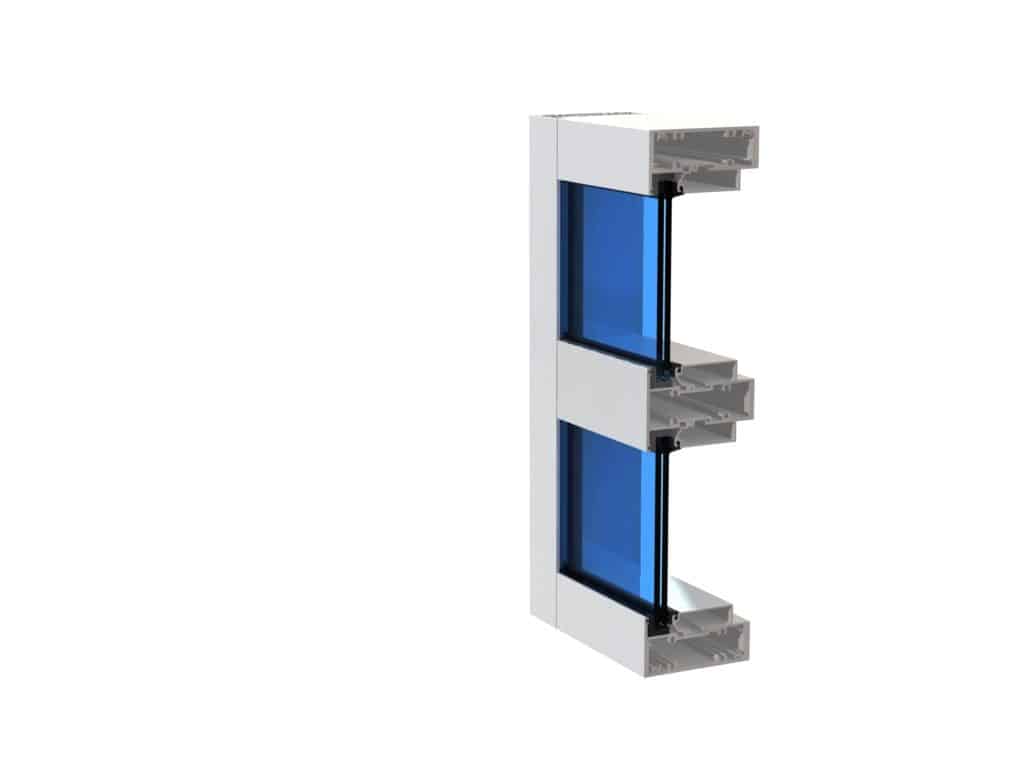

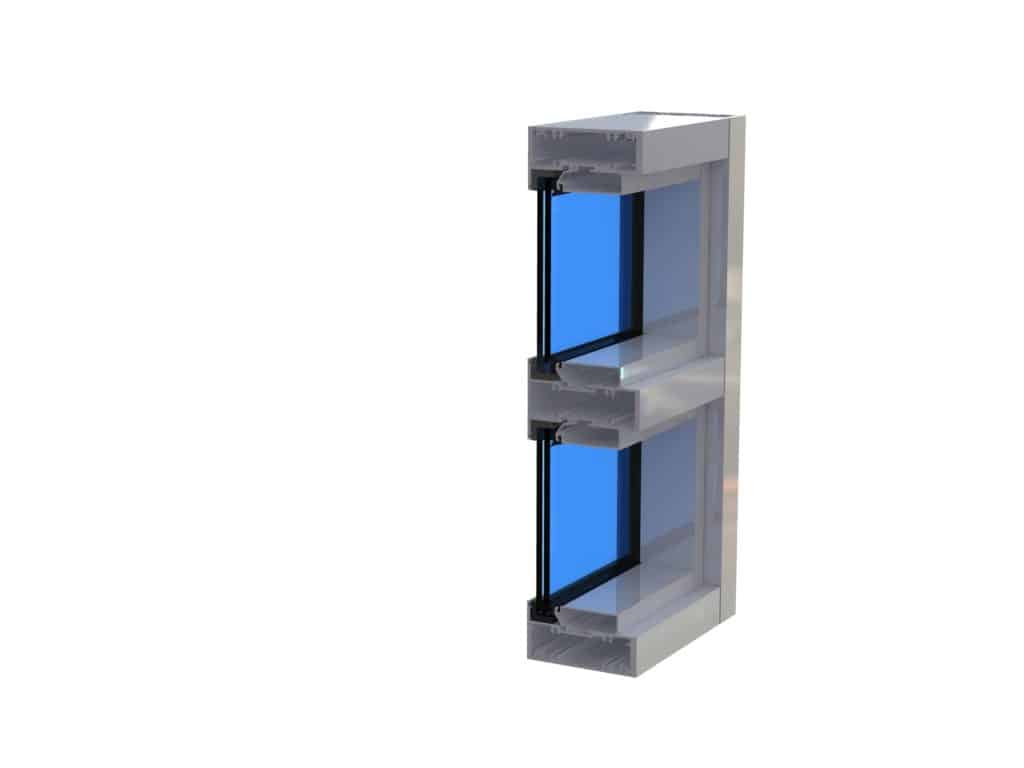

• Profile Dimensions: 1.50″ x 4.50″ framing with a 3/4″ front set.

• Glass Compatibility:

  • Laminated: 9/16″

  • Laminated-Insulated: 1 5/16″

• Maximum Panel Sizes:

  • Single Panel: Up to 75½” x 180″

  • Multiple Panels: Up to 60″ x 144″ or 72″ x 120″

• Design Pressures:

  • Non-Reinforced: +/- 90 psf

  • Reinforced: Up to +120/-135 psf

• Certifications:

  • Approvals: Florida Building Code (FBC), Miami-Dade (NOA), MD.

  • Testing Passed: TAS 201, TAS 202, TAS 203, ANSI Z97.

Options & Add-Ons

• Assembly: Choice of screw spline or shear block construction.

• Glazing Features: Flush stop available for 9/16″ glass; system can be pre-glazed.

• Structural Options: Free-standing jambs and thermal break technology available for enhanced performance.
