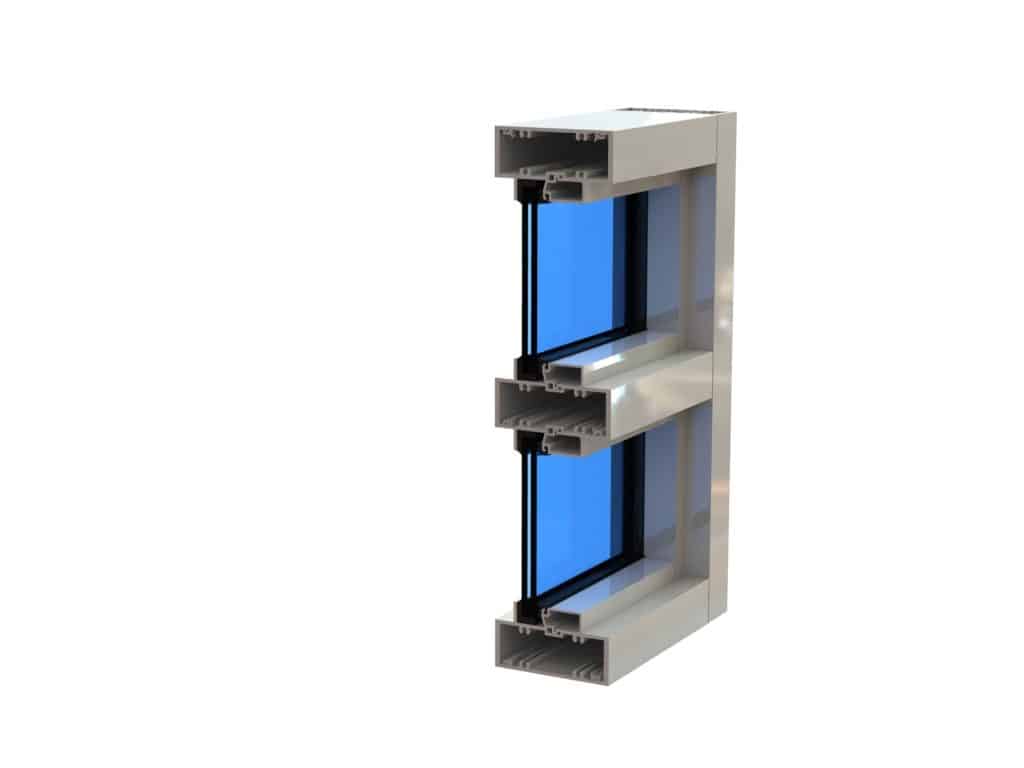

SMI-175 Impact Window Wall System

The SMI-175 Series is a robust, hurricane-resistant window wall solution designed for high-performance coastal applications. Distinguished by its “non-weep” wet seal design, it provides an exceptional barrier against water, wind, and cold air infiltration. The system is constructed using heavy-walled aluminum extrusions, which allow it to support larger glass panels and withstand extreme wind loads with minimal structural support, offering a cleaner aesthetic with fewer mullion interruptions.

Key Advantages

• Superior Weather Protection: The wet-seal, non-weep construction eliminates common water intrusion points found in traditional weeped systems.

• Simplified Fabrication: Engineered with only four primary extrusions, the system significantly reduces fabrication complexity.

• Versatile Installation: The screw spline assembly method enables off-site pre-glazing, allowing glaziers to ship completed units to the job site for faster installation.

• Customizable Geometry: Capable of stretch-forming for curved or radius designs, as well as segmented radius configurations.

Technical Specifications

• Framing Dimensions: 1 3/4″ x 4 1/2″ profile.

• Material: Aluminum alloy 6063-T6.

• Assembly: Screw spline construction with stainless steel fasteners.

• Glass Compatibility: Designed for 9/16″ laminated glass (Note: Not compatible with 1 5/16″ insulated laminated glass).

• Maximum Panel Sizes:

  • Annealed Glass: Up to 42″ x 120″

  • Heat Strengthened Glass: Up to 60″ x 120″

• Performance Ratings (Design Pressure):

  • Non-Reinforced (Annealed): +/- 63 psf

  • Reinforced (Heat Strengthened – PVB): +/- 90 psf

  • Reinforced (Heat Strengthened – Uvekol): +100/-120 psf

• Certifications:

  • Approvals: Florida Building Code (FBC), Miami-Dade (NOA), MD.

  • Testing Passed: TAS 201 (Impact), TAS 202 (Uniform Static Air Pressure), TAS 203 (Cyclic Wind Pressure), ANSI Z97.
